Imaging in Oral Cavity Cancer

The proximity or direct extension of a primary tumor of the oral cavity to the mandible requires appropriate radiological studies to establish the presence and extent of bone involvement:

• Although the absence of radiographic findings does not rule out bone invasion:

  • Bone destruction as seen on the radiograph confirms tumor invasion

• Radionuclide bone scans:
  • Often are positive before the radiographic appearance of bone destruction:
    • But they seldom provide accurate information regarding the extent of bone invasion
  • Bone scans also may be positive in non-neoplastic conditions:
    • Such as inflammatory lesions
• Plain radiographs of the mandible in the antero-posterior and oblique views:
  • Are not satisfactory as a routine screening test to establish or rule out bone destruction

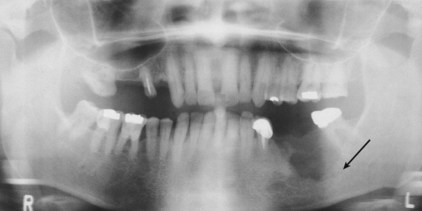

• A panoramic view of the mandible (an orthopantomogram):
  • Is helpful to assess the general architecture of the mandible in relation to the dento-alveolar structures and invasion by the tumor (Figure)

• However, for technical reasons:

  • The midline of the mandible near the symphysis is not adequately evaluated by a panoramic view

  • In addition, early invasion of the lingual cortex of the mandible is not seen on a panoramic view

  • Occlusal films of the body of the mandible and intraoral dental films:

    • Often are most accurate in demonstrating early invasion by a tumor

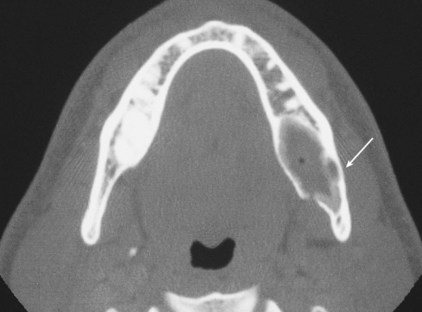

• CT scans of the mandible:
  • Generally are not optimal for routine screening:
    • But may be considered in certain circumstances:
      • Such as primary tumors of the mandible and lesions where soft tissue extension from tumors involving the ascending ramus of the mandible is suspected (Figure)

Three-dimensional reconstructions of CT images provide an excellent overview of the mandible or maxilla from any desired angle

• A computerized tomogram of the oral cavity and neck:
  • Is the standard initial radiographic study for assessment of locoregional extent of the tumor
  • It allows comprehensive evaluation of neck nodes and also the relationship of the primary tumor to adjoining bone:
    • Especially in situations such as primary tumors of the mandible and lesions where soft-tissue extension from tumors involving the ascending ramus of the mandible is suspected

• Three-dimensional reconstructions of the mandible of a patient with an ossifying fibroma of the body of the mandible on the left-hand side causing expansion and involving the lingual cortex are shown in the Figures








• A three-dimensional CT scan and a one-to-one reproduction of the CT scan:

  • Are of great value to the surgeon for mandible reconstruction with a microvascular free flap
