Pterygopalatine Fossa

Rodrigo Arrangoiz MS, MD, FACS, FSSO
  • The pterygopalatine fossa:
    • Is a small, cone- or inverted pyramid-shaped depression located deep within the upper face
    • It sits beneath the apex of the orbit, posterior to the maxilla, and medial to the infratemporal fossa
    • It acts as a major neurovascular crossroad connecting multiple regions of the skull
  • Borders / Boundaries – The borders of the pterygopalatine fossa are formed by the palatine, maxilla and sphenoid bones:
    • Anterior:
      • Maxillary tuberosity and posterior surface of the maxilla
    • Posterior:
      • Pterygoid process of the sphenoid bone (lateral pterygoid plate)
    • Medial:
      • Perpendicular plate of the palatine bone
    • Lateral:
      • Pterygomaxillary fissure opening into the infratemporal fossa
    • Superior:
      • Inferior surface of the greater wing of the sphenoid bone
      • Inferior orbital fissure of the eye
    • Inferior:
      • Pyramidal process of the palatine bone
  • Major Contents:
    • Maxillary nerve (V2):
      • The second division of the trigeminal nerve (cranial nerve V):
        • Passing through via the foramen rotundum (middle cranial fossa)
    • Pterygopalatine ganglion (Sphenopalatine ganglion):
      • A parasympathetic ganglion:
        • Associated with cranial nerve VII
    • Maxillary artery:
      • The third (terminal) part of the maxillary artery and its accompanying branches
    • Nerve of the pterygoid canal (Vidian nerve):
      • Carrying sympathetic (via the deep petrosal nerve) and parasympathetic fibers (via the greater petrosal nerve) into the fossa
  • Communications and Openings:
    • The fossa communicates with surrounding anatomic regions via several key foramina and fissures:
      • Middle cranial fossa:
        • Via the foramen rotundum
      • Orbit:
        • Via the inferior orbital fissure
      • Nasal cavity:
        • Via the sphenopalatine foramen
      • Oral cavity / Palate:
        • Via the greater and lesser palatine canals
      • Infratemporal fossa:
        • Via the pterygomaxillary fissure
      • Pharynx / Nasopharynx:
        • Via the pharyngeal / palatovaginal canal
  • Clinical Significance:
    • Because of its numerous pathways and high density of nerves and blood vessels:
      • The pterygopalatine fossa can act as a conduit for the spread of infections and malignant tumors from the face or nasal cavity into the cranial vault
    • Surgeons also target this area for nerve blocks or approaches to control severe bleeding (epistaxis)

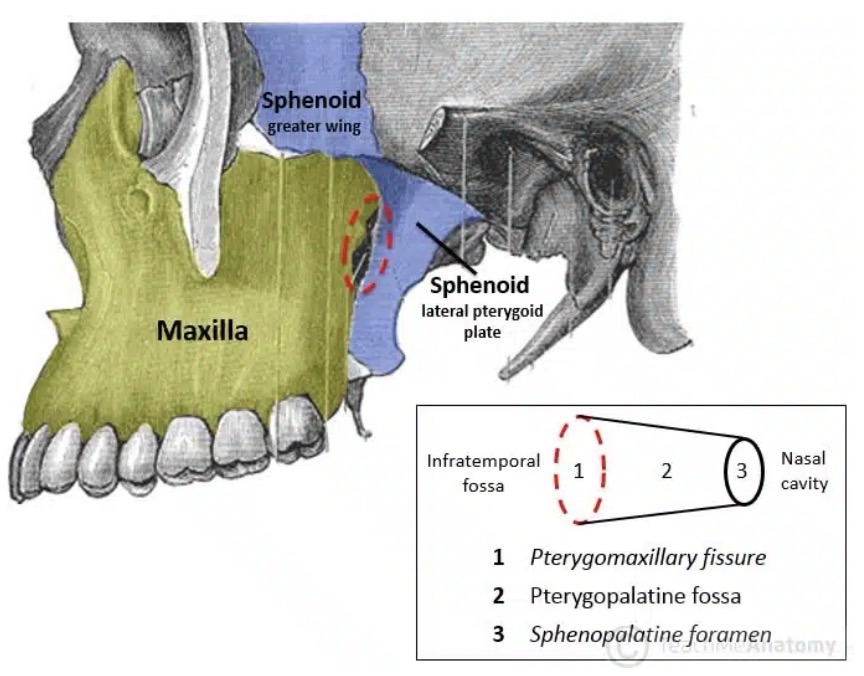

Left infratemoporal fossa demonstrating the opening of the pterygopalatine fossa (circled in red). Note: the zygomatic arch has been removed in this image.
