Tissue Harmonic Imaging in Breast Cancer

Rodrigo Arrangoiz MS, MD, FACS, FSSO
  • Tissue harmonic imaging:
    • Creates images derived solely from higher frequencies
  • The ultrasound beam:
    • Is transmitted centered at 1 frequency, e.g., 6 MHz
    • Received centered at a multiple of the transmitted frequency, e.g., 12 MHz
  • Different techniques can be used to process the received signals so that only the returning high-frequency harmonic signal is used to produce the image:
    • Whereas echoes from the fundamental / lower frequencies are rejected
  • THI increases signal-to-noise ratio:
    • Resulting in better tissue contrast
  • THI reduces reverberation, clutter, and speckle artifacts:
    • Improving contrast resolution
    • It accentuates real echoes in addition to suppressing artifactual echoes
    • The suppression of speckle artifact by coded harmonics makes solid nodules more hypoechoic and conspicuous than they are with fundamental imaging (Images a and b)

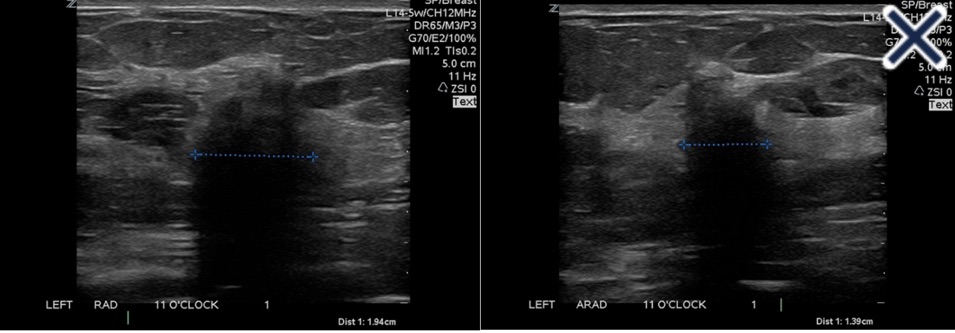

A. Infiltrating ductal carcinoma with fundamental imaging.
B. The same infiltrating ductal carcinoma as 2a with coded harmonic imaging.
  • It makes the thin, echogenic capsule that surrounds most benign lesions appear to be thinner, more echogenic and more complete than with fundamental imaging
  • THI cannot be combined with simultaneous color Doppler imaging because the resulting frame rate would be unacceptable:
    • When Doppler is required, the image that is interlaced with Doppler must be constructed at fundamental rather than harmonic frequencies
  • THI is of limited value in differentiating benign from malignant lesions.

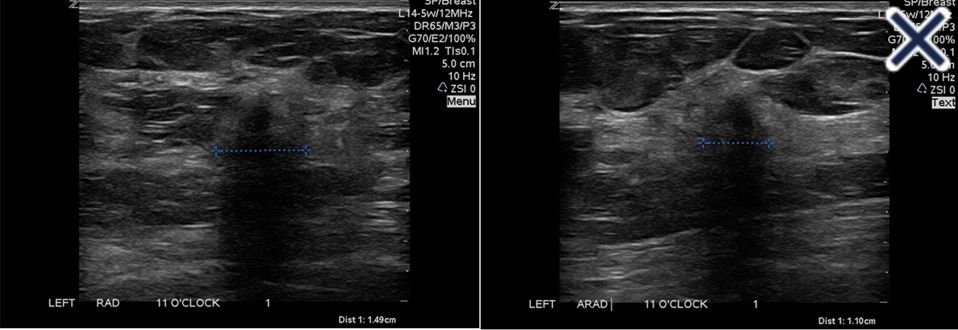

  • Another method of reducing artifactual echoes, improving contrast, and making the thin, echogenic capsule more conspicuous is real time spatial compounding of images:
    • In conventional imaging, each frame is created by a single sweep of the beam at a 90 degree angle to the long axis of the transducer
    • In compound imaging, there are multiple sweeps of the beam from different angles, creating a spatially and temporally compounded image from multiple angles over time
    • Among other things, the lateral borders of lesions can be seen better with compound imagin
  • References
    • Mesurolle B, Helou T, El-Khoury M, Edwardes M, Sutton EJ, Kao E. Tissue harmonic imaging, frequency compound imaging, and conventional imaging use and benefit in breast sonography. J Ultrasound Med. 2007;26(8):1041-1051.
    • Cha JH, Moon WK, Cho N, Kim SM, Park SH, Han BK, et al. Characterization of benign and malignant solid breast masses: comparison of conventional US and tissue harmonic imaging. Radiology. 2007;242(1):63-69.
    • Stavros AT. Breast ultrasound equipment requirements. In: Stavros AT. Breast Ultrasound. Philadelphia, PA: Lippincott Williams & Wilkins; 2004:16-41.
