• The larynx is an inferior continuation of the oropharynx:It extends from the epiglottis (namely the glossoepiglottic and pharyngoepiglottic folds) to the inferior aspect / border of the cricoid cartilage. Inferiorly:It continues as the cervical trachea.

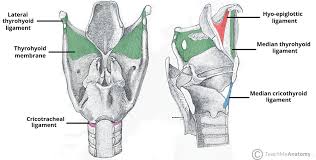

• Gross anatomy:The larynx consists of a cartilage “skeleton”, as well as internal structures that are divided into three subsites, mainly for the purposes of laryngeal cancer staging:Supraglottis: Which extends from the tip of the epiglottis to the laryngeal ventricle
  • • • Subsites:Epiglottis:Divided into suprahyoid and infrahyoid portionsPre-epiglottic spaceArytenoid cartilagesAryepiglottic foldsVentriclesFalse vocal cords
        • Paraepiglottic space
    • GlottisTrue vocal cordsAnterior commissurePosterior commissure
    • Subglottis: Extends from the inferior surface of the true vocal cords / 5mm below the free margin of the true vocal cord to the inferior aspect / lower border of the cricoid cartilage
• Relations:Anterior: Strap muscles
  • • Anterior jugular vein
  • Posterior: EsophagusLaryngopharynx
  • Superior: Hyoid boneLaryngopharynx
  • inferior: Trachea
• Arterial supply:Above the vocal cords: Superior laryngeal artery:Branch of the superior thyroid arteryBelow the vocal cords:Inferior laryngeal artery:
  • • • Branch of the inferior thyroid artery
• Venous drainageAbove the vocal cords: Superior laryngeal vein accompanies its artery and drains into the superior thyroid vein:A tributary to the internal jugular veinBelow the vocal cords: Inferior laryngeal vein accompanies its artery and drains into the inferior thyroid vein:A direct tributary to the brachiocephalic vein
• Lymphatic drainage:Supraglottic: The supraglottic lymphatic network follows the superior laryngeal artery:Piercing the thyrohyoid membrane and then draining into the superior deep cervical nodes and the pre-epiglottic nodes. Subglottic: The infraglotttic lymphatic network drains to the inferior deep cervical nodes, following the inferior laryngeal artery, and/or the prelaryngeal (Delphian) nodes via the conus elasticus (aka the lateral cricothyroid ligaments). Both the superior and inferior deep cervical nodes then drain into the right and left jugular trunks:Which subsequently empty into the right lymphatic duct and the thoracic duct on the left.
• Innervation:Motor: The recurrent laryngeal nerve supplies all the intrinsic muscles of the larynx apart from the cricothyroid muscle:Which is supplied by the external branch of the superior laryngeal nerve.Sensory: Above the vocal cords (supraglottic): Internal branch of the  superior laryngeal nerveBelow the vocal cords (infraglottic): Recurrent laryngeal nerve
• Development:The larynx is formed from the laryngotracheal groove:Which is related to the caudal aspect of the floor of the primordial pharynxThe cartilages of the larynx develop from:The 4^th and 6^th pharyngeal arches

Staging of Laryngeal Cancer

---

T Category	T Criteria
Reprinted with permission from AJCC: Larynx. In: Amin MB, Edge SB, Greene FL, et al., eds.: AJCC Cancer Staging Manual. 8th ed. New York, NY: Springer, 2017, pp 149–61.
TX	Primary tumor cannot be assessed.
Tis	Carcinoma in situ.
Supraglottis
T1	Tumor limited to one subsite of supraglottis with normal vocal cord mobility.
T2	Tumor invades mucosa of more than one adjacent subsite of supraglottis or glottis or region outside the supraglottis (e.g., mucosa of the base of the tongue, vallecula, medial wall of pyriform sinus) without fixation of the larynx.
T3	Tumor limited to larynx with vocal cord fixation and/or invades any of the following: post-cricoid area, pre-epiglottic space, para-glottic space, and/or inner cortex of thyroid cartilage.
T4	Moderately advanced or very advanced.
T4a	Moderately advanced local disease.    Tumor invades through the outer cortex of the thyroid cartilage and/or invades tissues beyond the larynx (e.g., trachea, soft tissues of the neck including deep extrinsic muscle of the tongue, strap muscles, thyroid, or esophagus).
T4b	Very advanced local disease.                Tumor invades prevertebral space, encases carotid artery, or invades mediastinal structures.
Glottis
T1	Tumor limited to the vocal cord(s) (may involve anterior or posterior commissure) with normal mobility.
T1a	Tumor limited to one vocal cord.
T1b	Tumor involves both vocal cords.
T2	Tumor extends to supraglottis and/or subglottis, and/or with impaired vocal cord mobility.
T3	Tumor limited to the larynx with vocal cord fixation and/or invasion of paraglottic space and/or inner cortex of the thyroid cartilage.
T4	Moderately advanced or very advanced.
T4a	Moderately advanced local disease.    Tumor invades through the outer cortex of the thyroid cartilage and/or invades tissues beyond the larynx (e.g., trachea, cricoid cartilage, soft tissues of the neck including deep extrinsic muscle of the tongue, strap muscles, thyroid, or esophagus).
T4b	Very advanced local disease.               Tumor invades prevertebral space, encases carotid artery, or invades mediastinal structures.
Subglottis
T1	Tumor limited to the subglottis.
T2	Tumor extends to vocal cord(s) with normal or impaired mobility.
T3	Tumor limited to the larynx with vocal cord fixation and/or invasion of paraglottic space and/or inner cortex of the thyroid cartilage.
T4	Moderately advanced or very advanced.
T4a	Moderately advanced local disease.    Tumor invades cricoid or thyroid cartilage and/or invades tissues beyond the larynx (e.g., trachea, soft tissues of the neck including deep extrinsic muscles of the tongue, strap muscles, thyroid, or esophagus).
T4b	Very advanced local disease.                Tumor invades prevertebral space, encases carotid artery, or invades mediastinal structures.
